328C

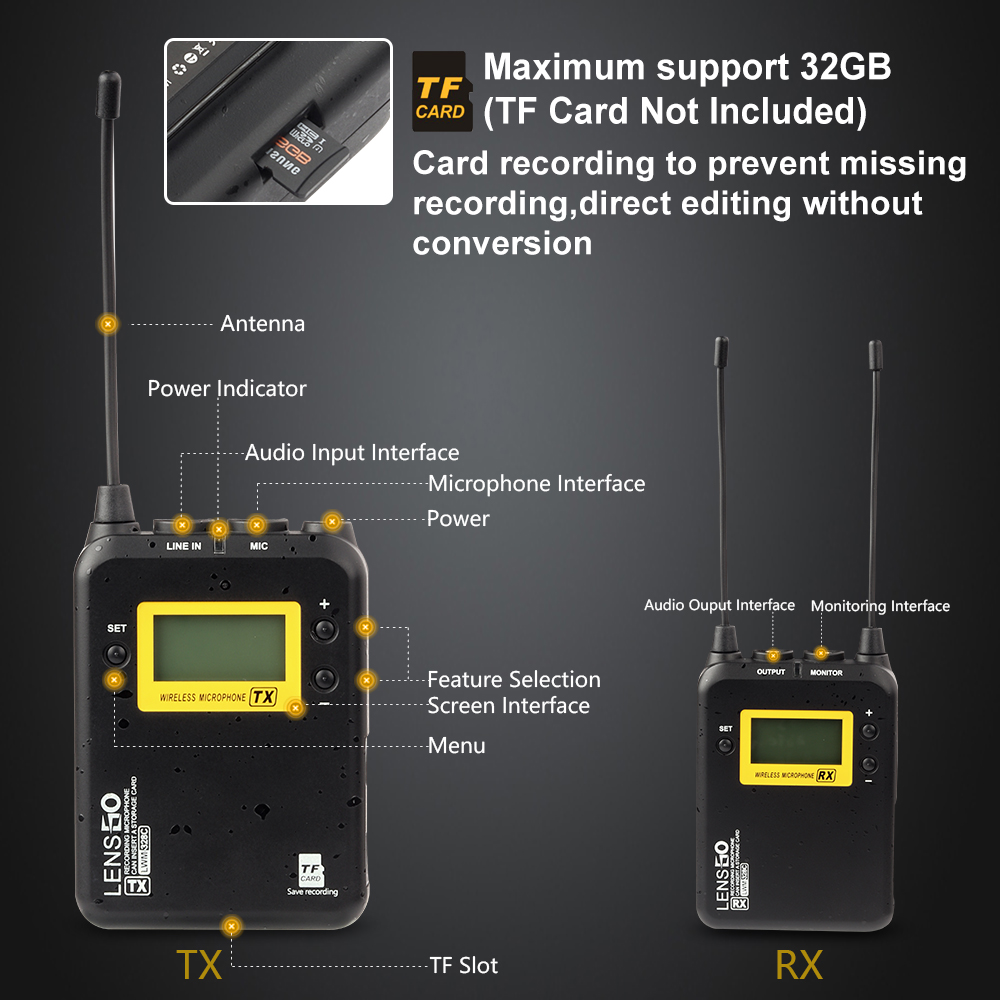

TF card and wireless microphone transmitter record audio synchronously. You can select "Record Menu"-"Enable", insert the 32G (Max) TF card into the wireless microphone transmitter to prevent audio loss during real-time shooting and prevent audio recording loss due to external channel interference with breakpoints. Note: Not included TF card

Wireless lavalier microphone system compatible with Nikon Canon Sony DSLR camera, camcorder, iPhone Android smartphone, iPad and More. Wireless lapel microphone is the best choice for YouTube live, Video recording, Audio recording, Vlog recording, Interviews, Micro film recording, Podcasts, Wedding, Mobile journalists, Content creators, ENG and EFP etc

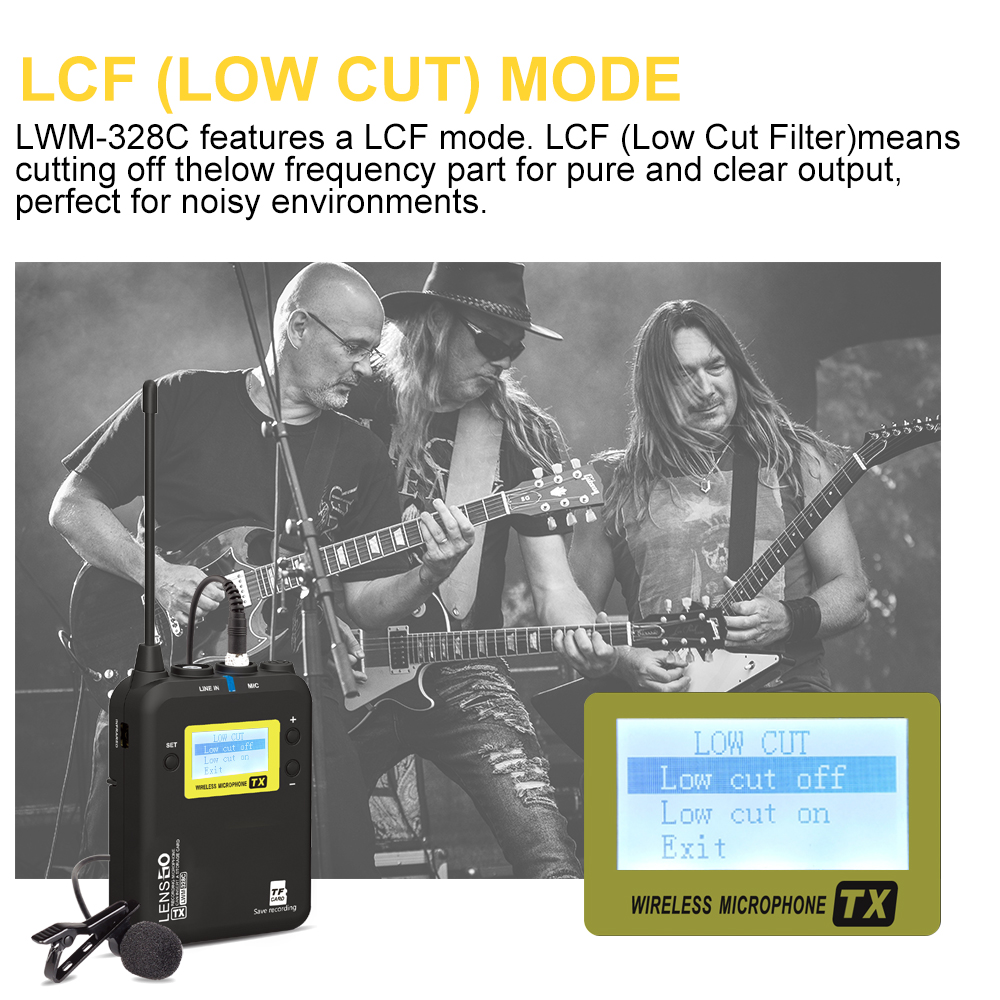

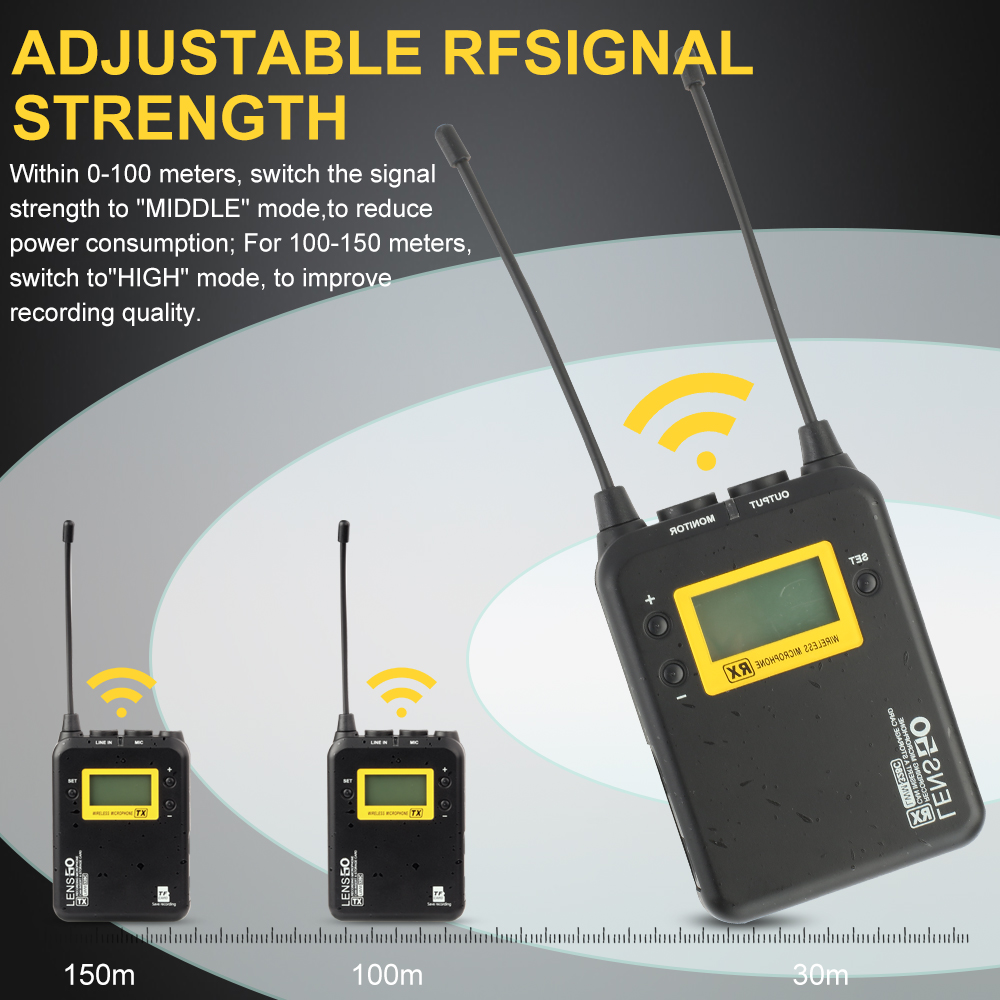

Record crystal-clear, distortion-free audio. Adopts international UHF wireless transmission, 1 receiver triggered by 1 transmitter, which can be used for multiple devices working together, adjustable RF signal strength or auto-scanning for quick channel selection to A/B group.With LCF low cut filtering Mode and Manual / Auto sync.

The wireless lavalier microphone system, each unit is powered by two "AA" batteries (Not included) for up to 5 hours of operation. The farthest range 500 ft (150m) in open areas, best receiving range is within 246 ft (75m).


现在去购买


产品更多产品相关视频

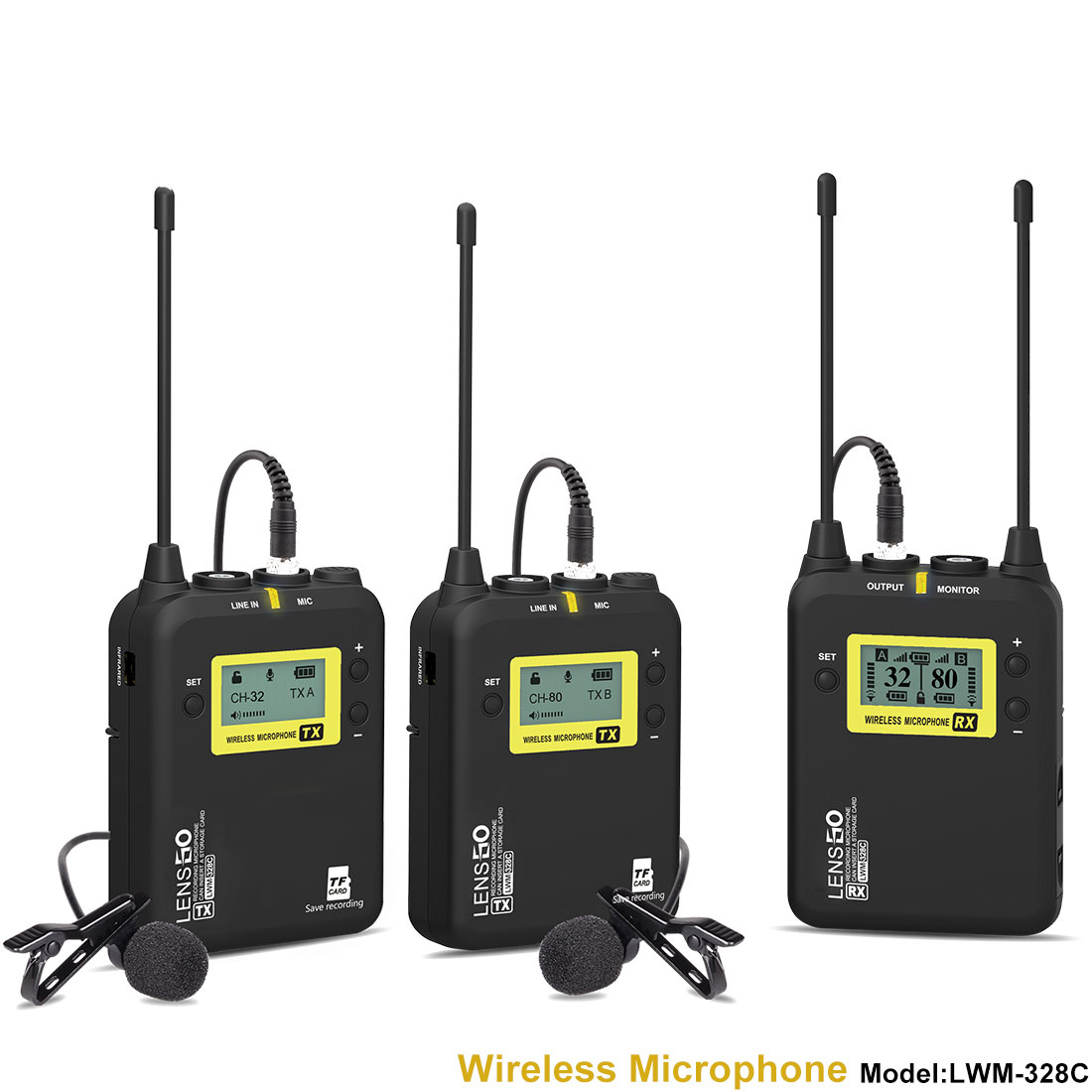

LENSGO LWM-328C Wireless Microphone: Sounds in Sync Everywhere!

LESNGO LWM-328C Wireless Lavalier Microphone system, wireless lavalier lapel mic with 1 Receiver & 2 Transmitter for iPhone Android Smartphone Canon Nikon DSLR Camera. It is the best choice for YouTube Facebook Live Vlog recording Interview Program Hosting Podcast Presentation Church Wedding ENG EFP and More

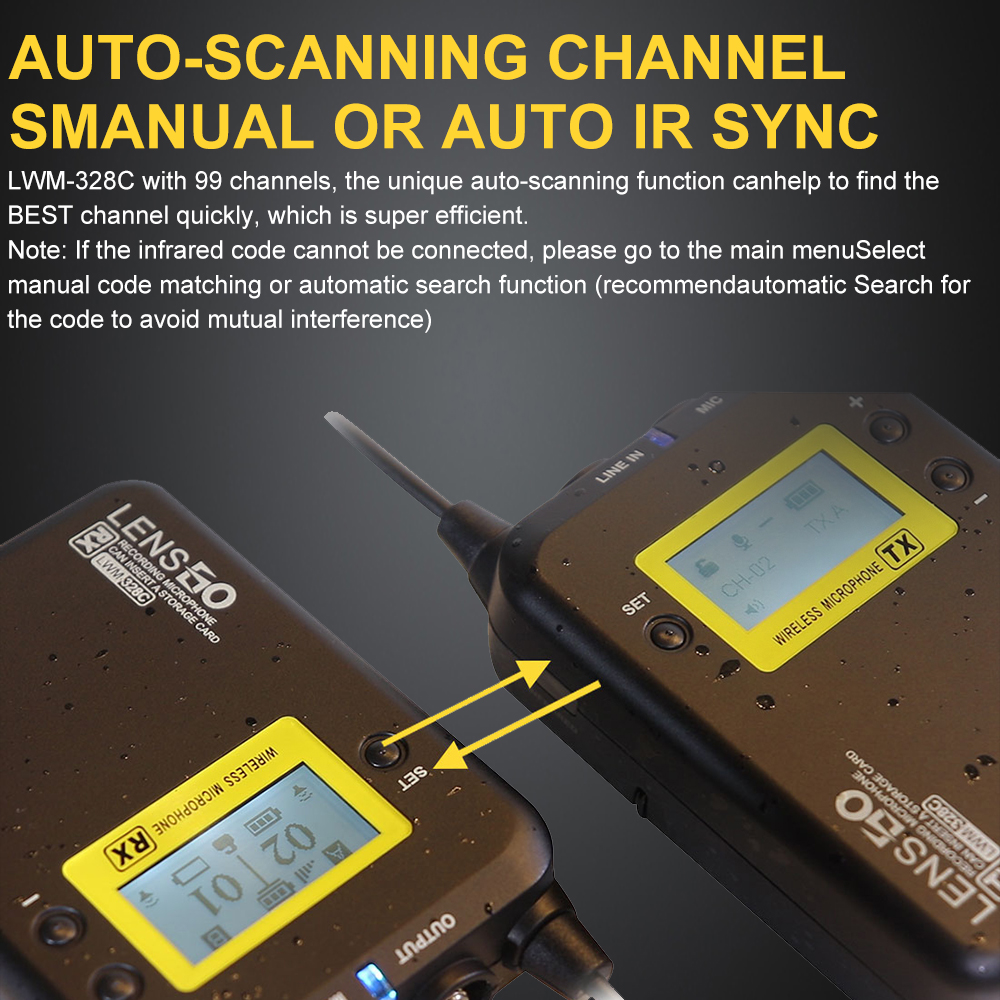

It uses UHF wireless technology and LED high-resolution lattice screen: 99 channels in total, Auto-scanning, Auto Channel-match, audio LCF mode,RF signal strength adjustment,MIC/LINE IN input dual selection, power monitoring at receiver end, sound pickup dynamic display, back light adjustment and other functions, at the same time with strong shielding anti-noise performance, it’s a high-quality microphone to broadcasting level.

NOTE:

1. Insert a card to record, a new TF card or format an old TF card, this TF must always be used with the wireless lavalier microphone

2. TF synchronization recording files may not be directly put into Premiere Pro and other video editing software, you need to convert the format of the recording file to put it into the video editing software.



Frequency range: 520MHz ~ 590MHz

Channels: 100 channels

Frequency response: 60 ~ 17KHz

Effective Distance: 150 meters(No obstacle)

Antenna: SMA omnidirectional antenna

Audio interface: 3.5mm TRS interface

Signal to noise ratio: ≥75dB

Sound delay: <1mS

Spurious suppression: -60dB

Recording sampling rate: 16bit 48K

Max Capacity: max support capacity of 32G

Power: Two AA batteries

Life time: 8H

Dimensions: 195mm * 30mm * 65mm

Weight: RX 140g, TX 120g



产品规格

明细

Polar Pattern
Omnidirectional
Channels

20

Wireless Frequency570.0 MHz - 589.0 MHz
Working Distance50m(LOS),20m(NLOS)
Input Frequency Range30Hz-20KHz
Receving Sensitivity
-35dB(+/-3dB)/0dB=1vPa,1kHz
Delayed<20ms
RF Output Power8dbm
Signal/Noise78
Maximum SPL(Mic)120dB SPL
Maximum Input Level(3.5mm)
150mv
Microphone Preamp Gain
20db
Equivalent Noise Level(A-Weighted)
-95db
Audio Output Jack

1 x 1/8" /3.5mm TRS Line Out

1 x 1/8" /3.5mmTRS Headphone Output

Input
Built-in Mic/External Mic
Battery

Built-in 500mAh Rechargable Li-Battery(Mic-USB)

Working Time
4H
Charging Time
1.5H
Antenna
Spring Antenna
Operating Temperature

-20°C to + 80°C

Storage Temperature
0°C to + 40°C
Weight

30g(TX or RX)

Dimensions
67mm(Length)*26mm(Width)*30mm(Height)

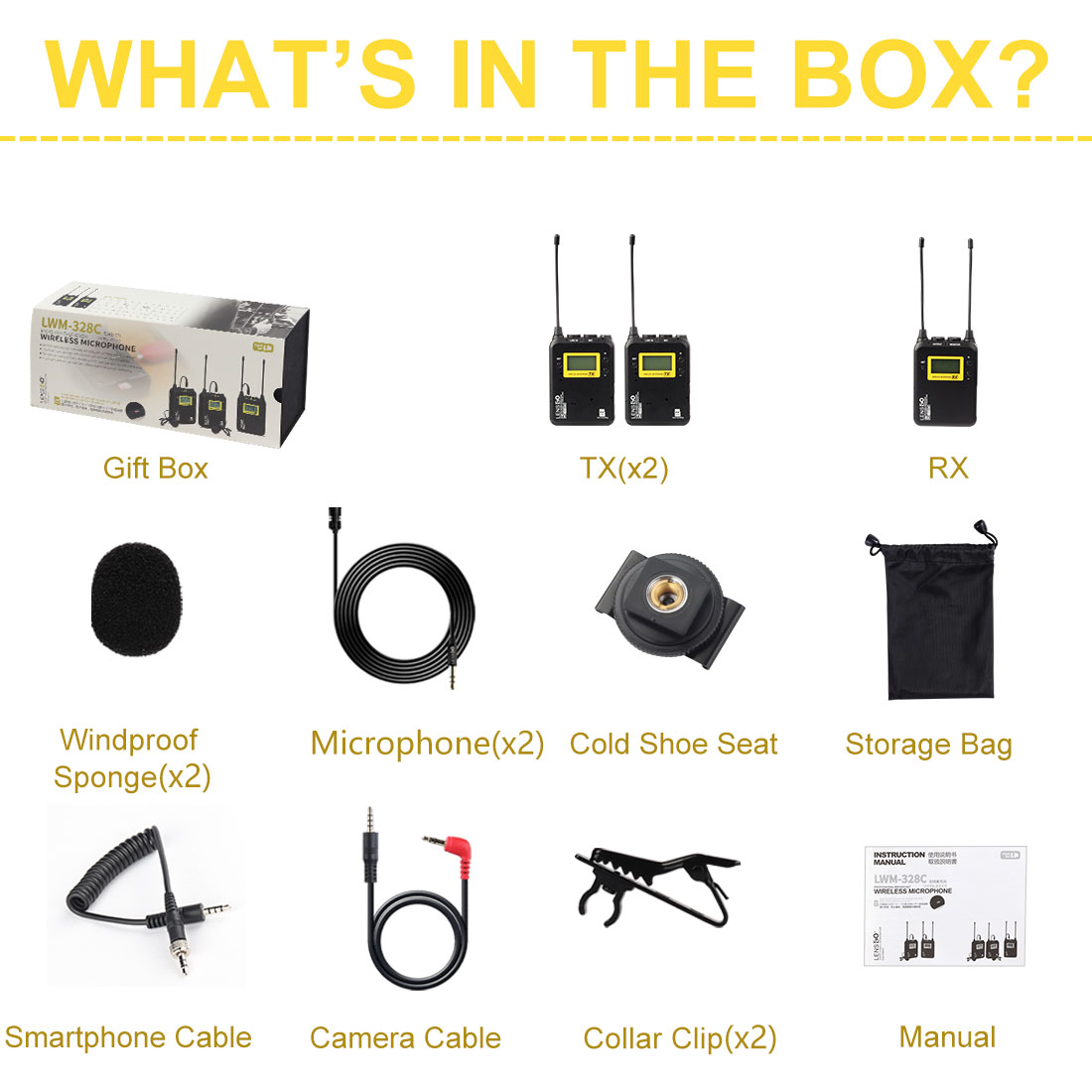

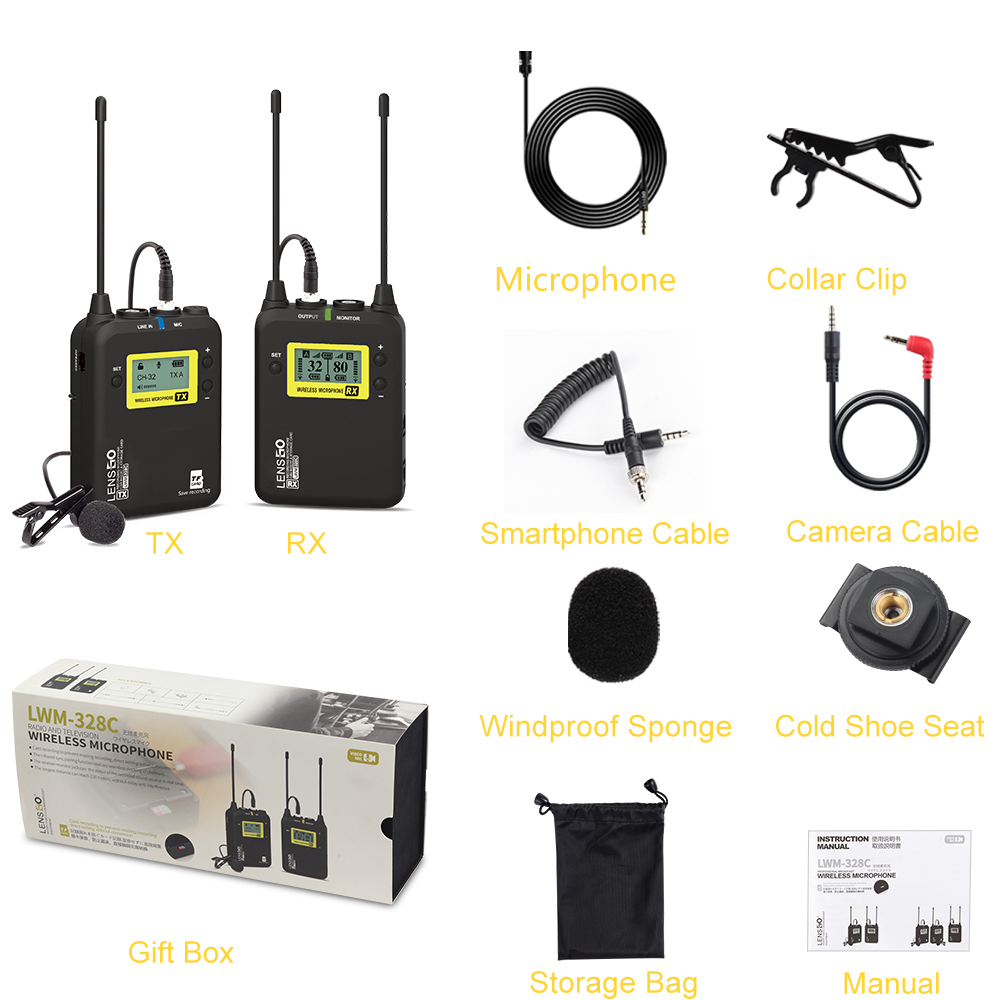

Packing including:

Single series:


Double series:




产品附件


FAQs


Yeap,there are two connect styple.

A:Director side let the transmitter connect with mixer use the line in.

B:Singer take the transmitter use the 3.5mm jack.

Yeap,you can get decent sound from either. Most of our customer use lensgo328c connect with lensgodmm1 and lensgodmm2.

You need to get a trrs adapter to connect your smartphone. If you use iPhone 7 up, you need to connect your original lightning cable.

It only have two ways of power supply:
A. Internal AA Battery 2pcs
B. External Type-C charging direcly charge the rechargable AA battery.remember it is rechargable battery.you'd better use 1.2V NiMH battery

When you are charging the red light is always on,at the full of charging the red light flash,full of charge red light gose off.

Yes,it can work with you camera.gropro hero 7 has a USB jack.our lensgo328c wireless microphone comes with 3.5mm audio output cable, if you use correct adapter, so this microphone can fit the gropro hero 7 camera well.

This microphone has one receiver and two transmitters. If you want it to output stereo, you can set the two transmitters to A/B Group separately, then select the output mode to stereo mode in the receiver settings.

Please adjust the recording volume of the camera to 3 or 4 or 5,then adjust the transmitter mic gain in -3 or -2  or -1,depent on your device,the last one you should adjust the receiver volume  to a little bit small.

It can record the longest distance is 150 meters without barrier,you can adjust the channel to 50~99 channel to ensure it can record longer.

The 32G memory card can record 180H,insert the memory card and reset,finish the record ,please stop the function of record.


It can be used for 5 Hours.
